Phase diagram of water ... 'stick' to one another and to other polar molecules ... mass of component total mass of mixture X 100% molality (m) = Other much more complex types of phase diagrams can be constructed, particularly when more than one pure component is present. In that case, concentration becomes an important variable. Phase diagrams with more than two dimensions can be constructed that show the effect of more than two variables on the phase of a substance.
A condensed phase rule is the one used to represent the phase diagram of a condensed system, either liquid or solid. In such a case, for two or more components, the phase diagram becomes multidimensional. Look at, F = C - P + 2, for one phase, 2 - 1 + 2 = 3 and the phase diagram will have three dimensions.
One component phase diagram
One Component Phase Systems: Sulphur System. The phase diagram of sulphur is somewhat more complicated than that of water although both are one component systems.A phase is defined as "a homogeneous, physically distinct and mechanically separable portion of the system, which is separated from other such parts of the system by definite boundary surface". In the phase diagram to the right, the boundary curve between the liquid and gas regions maps the constraint between temperature and pressure when the single-component system has separated into liquid and gas phases at equilibrium. The only way to increase the pressure on the two phase line is by increasing the temperature. If the temperature is decreased by cooling, some of the gas condenses ... Consider the phase diagram for carbon dioxide shown in Figure 5 as another example. The solid-liquid curve exhibits a positive slope, indicating that the melting point for CO 2 increases with pressure as it does for most substances (water being a notable exception as described previously). Notice that the triple point is well above 1 atm, indicating that carbon dioxide cannot exist as a liquid ...
One component phase diagram. as axes are called phase diagrams. DEF. A phase diagram (or equilibrium diagram) is a diagram with T and composition as axes, showing the equilibrium constitution. The phase diagram of an alloy made of components A and B, for all combinations of T and X B, defines the A-B system. Binary systems have two components, ternary systems three, and so on. in the system. The phase diagram in Fig. 6 shows the equilibrium phases present when an equimolar Fe-Cr alloy is equilibrated at 925oC with a gas phase of varying O 2 and S 2 partial pressures. For systems at high pressure, P-T phase diagrams such as the diagram for the one-component Al 2SiO 5 system in Fig. 7a show the fields of stability of This Video explains Phase diagram for One Component system of water. It will help to prepare for engineering chemistry exam. Phase diagram or equilibrium diagram which has controllable parameter which affect phase structure, it has many types dependent on number of components and number of phases. The one component ...

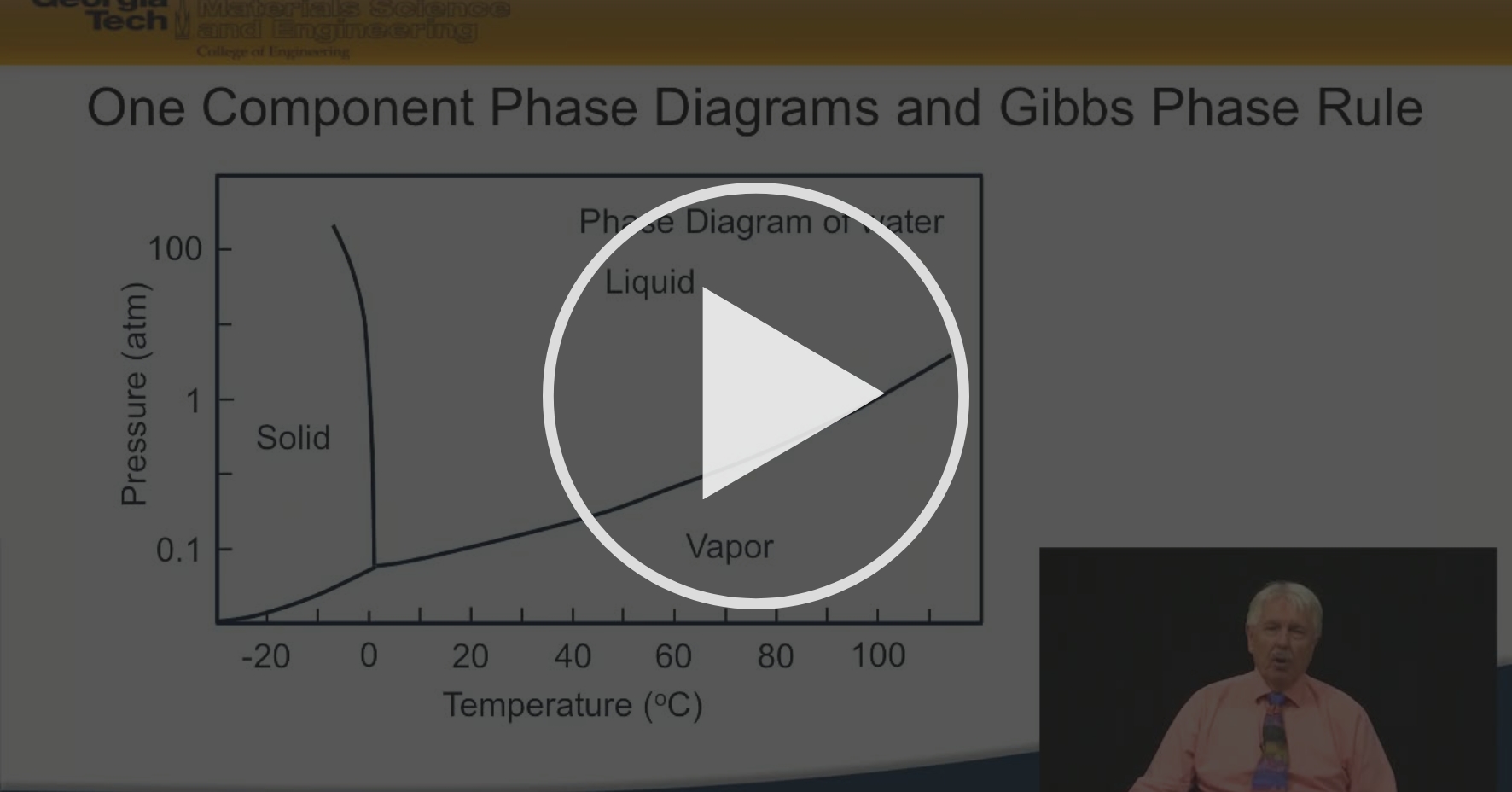

1.2 One-Component Phase Diagrams and Gibbs Phase Rule 11:04. 1.3 Regions of Two Phase Equilibrium 8:53. 1.4 Additional One-Component Phase Diagrams 3:27. Taught By. Thomas H. Sanders, Jr. Regents' Professor. Try the Course for Free. Transcript. Explore our Catalog Join for free and get personalized recommendations, updates and offers. ... One Component Phase Systems: Water System. Water can exist in any of the phases - solid (ice), liquid or vapor. All three phases can be represented by the chemical entity H 2 O. So it is a one-component system.The conditions of equilibria between the various phases of a substance can be represented simultaneously on a single graph which is known as a phase diagram. Phase diagram for the one component system Al 2 SiO 5. The entire system is defined by one component: Al 2 SiO 5 (i.e. all the phases can be completely made of this one component) There are three solid phases shown in this diagram: the polymorphs of Al 2 SiO 5 andalusite, kyanite and sillimanite. The first module deals with phase diagrams - charts that tell us how a material will behave given a certain set of variables such as temperature, pressure, and composition. You will learn how to interpret common and complex phase diagrams and how to extract useful information from them. 1.2 One-Component Phase Diagrams and Gibbs Phase Rule 11:04.
Phase Diagrams • Indicate phases as function of T, Co, and P. • For this course:-binary systems: just 2 components.-independent variables: T and Co (P = 1 atm is almost always used). • Phase Diagram for Cu-Ni system Adapted from Fig. 9.3(a), Callister 7e. (Fig. 9.3(a) is adapted from Phase Diagrams of Binary Nickel Alloys , P. Nash The phase diagram shown here is for a single component system. In this simple system, phases that are possible, depends only on pressure and temperature . The markings show points where two or more phases can co-exist in equilibrium. Experimental Determination of 2-Component Phase Diagrams. As an example, we're going to look at how one might go about determining the stability of a mixture of 2 mineral phases, A and B. To perform these experiments we start with pure minerals A and B and then make mixtures in varying proportions. PHASE DIAGRAM: DEFINITION ! Component: Each phase in the system may be considered to be composed of one or more components. The number of components in the system must be the minimum required to define all of the phases. Ex: salt-water system - components Na, Cl, H, and O: four components - NaCl, H, and O: three components - NaCl and H
2D phase diagram. A phase diagram. The simplest phase diagrams are pressure-temperature diagrams of a single simple substance, such as water. The axes correspond to the pressure and temperature. The phase diagram shows, in pressure-temperature space, the lines of equilibrium or phase boundaries between the three phases of solid, liquid, and gas.

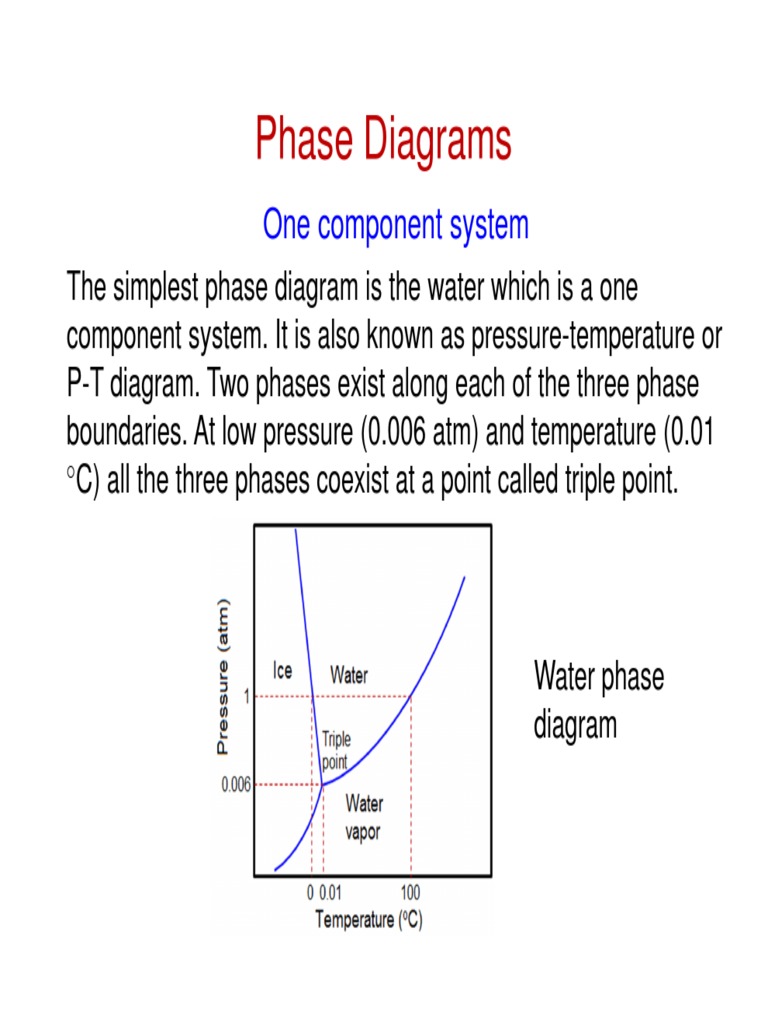

A system consisting of a pure substance, a one-component system, may be represented by a phase or equilibrium diagram with pressure and temperature as the two axes. (It is customary to plot pressure as the ordinate.) The phase diagram for the solid, liquid and vapour phases of water is shown in figure 2.1.
A phase diagram is also called an equilibrium or constitutional diagram. It shows the relationship between temperature, the compositions and the quantities of phases present in an alloy system under equilibrium conditions. When temperature is altered many microstructure develop due to phase transformation. It may involve transition from one ...
Lecture 17 20.110/5.60/2.772 Fall 2005 1 Phase Equilibria: One component systems Phase diagrams Clapeyron Equation Phase Rule • Phase Equilibria in a One Component System Goal: Understand the general phenomenology of phase transitions and phase coexistence conditions for a single component system.
Phase Diagram:One Component System 1. PHASE DIAGRAMS INTRODUCTION Engineering materials are known by their set of properties. The properties depends to a large extent on microstructure and macrostructure. Macrostructure, it can be observed with the naked eye or maybe even upto 15 times magnification. The macrostructure gives information on the material's grain size, shape and defects present ...
The phase space can also refer to the space that is parameterized by the macroscopic states of the system, such as pressure, temperature, etc. For instance, one may view the pressure-volume diagram or entropy-temperature diagrams as describing part of this phase space. A point in this phase space is correspondingly called a macrostate.
Unary-Phase Diagrams In the case of a unary or one-component system, only temperature and pressure may be varied, so the coordinates of unary phase diagrams are pressure and temperature.In a typical unary diagram, as shown in Figure 3.11, the temperature is chosen as the horizontal axis by convention, although in binary diagrams temperature is chosen as the vertical axis.
We will limit our discussion of phase diagrams of multi-component systems to binary alloys and will assume pressure to be constant at one atmosphere. Phase diagrams for materials with more than two components are complex and difficult to represent. An example of a phase diagram for a ternary alloy is shown for a fixed T and P below.
Understanding Phase Diagrams - V.B. John . Ternary phase diagram books by D.R.F. West - there are several ... but can have compounds: ← For "normal diagrams", where interested in all . components, use the . Normal equilateral . triangle. For diagrams where there is a major . ... - Phase missing - At least one inaccurate result ...
THE ONE COMPONENT SYSTEM -- I. Thermodynamic Basis of the Phase Diagram -- II. Application of the Phase Rule to the System H2 0 at Ordinary Temperature and Pressure -- III. Le Chatelier's Principle and the Clausius-Clapeyron Equation -- IV. Metastability and Non-Equilibrium -- V. The Bridgman Ice Diagram and the Importance of -- Pressure ...
Elemental carbon has one gas phase, one liquid phase, and two different solid phases, as shown in the phase diagram: (a) On the phase diagram, label the gas and liquid regions. (b) Graphite is the most stable phase of carbon at normal conditions. On the phase diagram, label the graphite phase.
Ukm Pharmacy Group 1 Practical 3b Determination Of Phase Diagram For Ethanol Toluene Water System Theory Three Component Systems
# Phase diagram # 1- component system # Priyanka jain chemistry # csir net chemistry Other Related videos-PHASE DIAGRAM 2- component system -https://youtu.be...
The phase relationships for voltage and current between primary and secondary circuits of a transformer are direct: ideally, zero phase shift. The dot convention is a type of polarity marking for transformer windings showing which end of the winding is which, relative to the other windings.
Phase diagrams are graphical plots that are devised to show the relationships between the various phases that appear within the system under equilibrium conditions. As such, the diagrams are variously called constitutional diagrams, equilibrium diagrams, or phase diagrams. A single-component phase diagram can be simply a one- or two-dimensional ...
1 Answer. In water there is only one component i.e. water and its three phases: ice, water, steam which are solid, liquid, and gaseous respectively. Figure below represents phase diagram or pressure v/s temp diagram for the water system. The three curves OA, OB and OC represent the equilibrium conditions between two phases solid with vapour ...
Consider the phase diagram for carbon dioxide shown in Figure 5 as another example. The solid-liquid curve exhibits a positive slope, indicating that the melting point for CO 2 increases with pressure as it does for most substances (water being a notable exception as described previously). Notice that the triple point is well above 1 atm, indicating that carbon dioxide cannot exist as a liquid ...
In the phase diagram to the right, the boundary curve between the liquid and gas regions maps the constraint between temperature and pressure when the single-component system has separated into liquid and gas phases at equilibrium. The only way to increase the pressure on the two phase line is by increasing the temperature. If the temperature is decreased by cooling, some of the gas condenses ...
One Component Phase Systems: Sulphur System. The phase diagram of sulphur is somewhat more complicated than that of water although both are one component systems.A phase is defined as "a homogeneous, physically distinct and mechanically separable portion of the system, which is separated from other such parts of the system by definite boundary surface".
