If input pressure is below 40 psi, a booster pump or a permeate pump is needed. We have a RO system with built-in permeate pumps, and we also carry booster pumps. If the input water pressure is above 80 psi ( you must use a pressure regulator to step down the pressure). We also carry small pressure regulators just for the RO system. • Booster pump kit to increase feed pressure by ~40 psi. This kits includes the pump, transformer, pressure switch and solenoid valve • Pressurized product water storage tank Warranty Culligan's LC Series Reverse Osmosis Systems are backed by a one year limited warranty against defects in material and workmanship. See printed warranty for

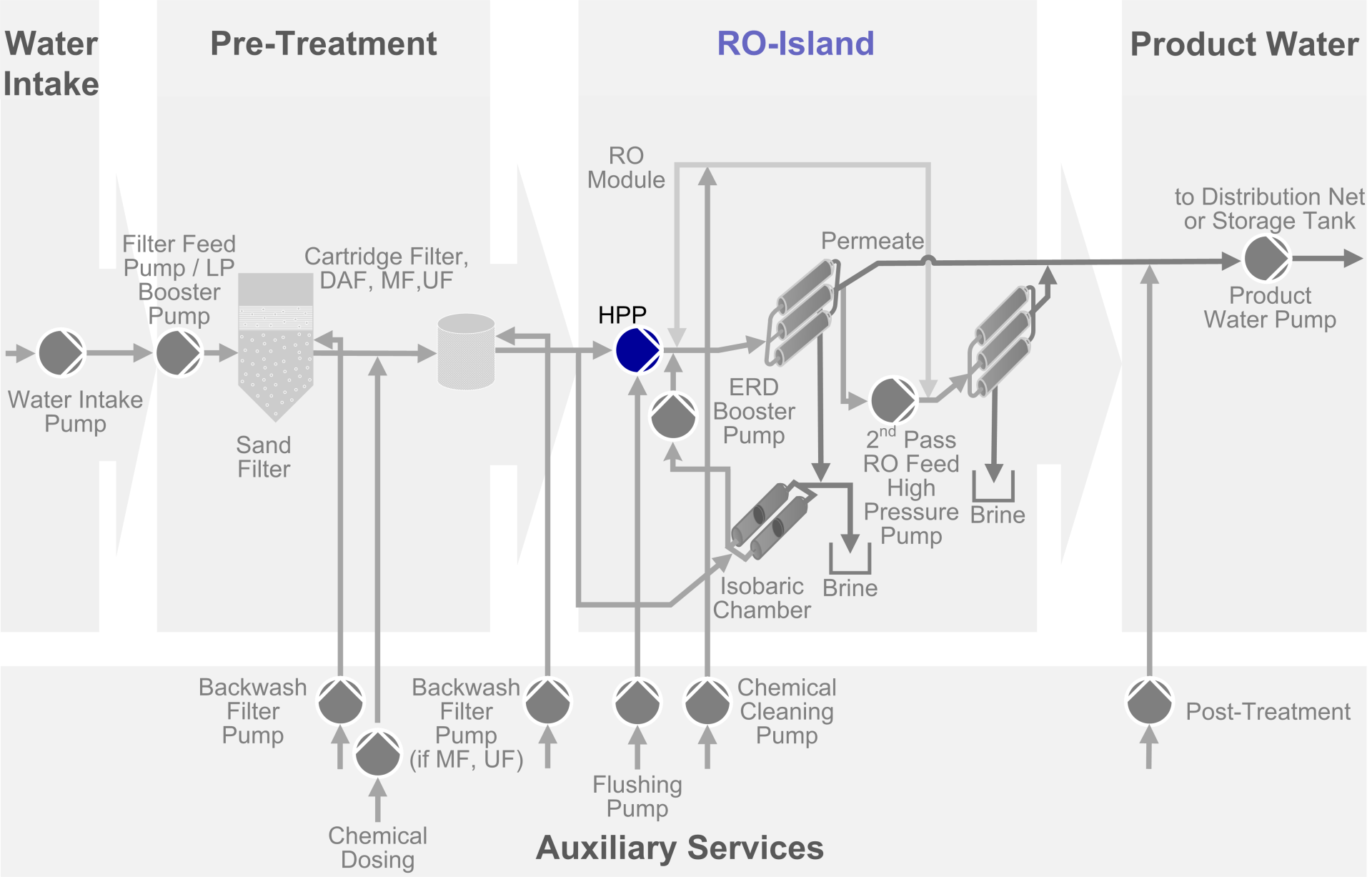

How. Reverse Osmosis Booster Pumps. Work. The purpose of the reverse osmosis booster pump is to increase water pressure going into the RO unit. Reverse osmosis is a pressure-driven process. Small residential RO units will theoretically operate on very low pressure--down to 35 psi, according to some membrane makers--but the reality is, you won't ...

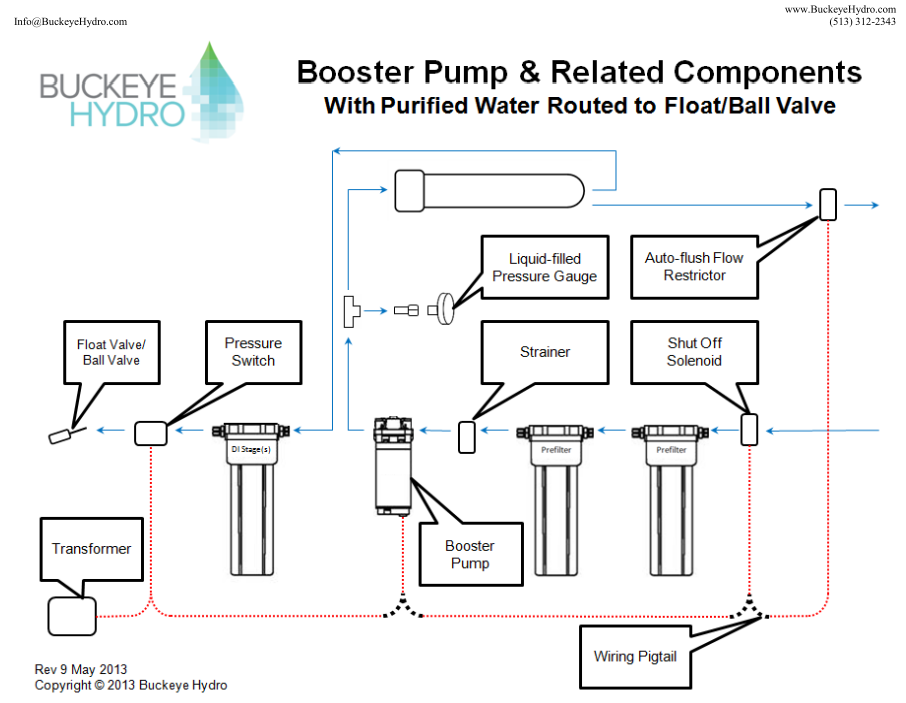

Ro booster pump installation diagram

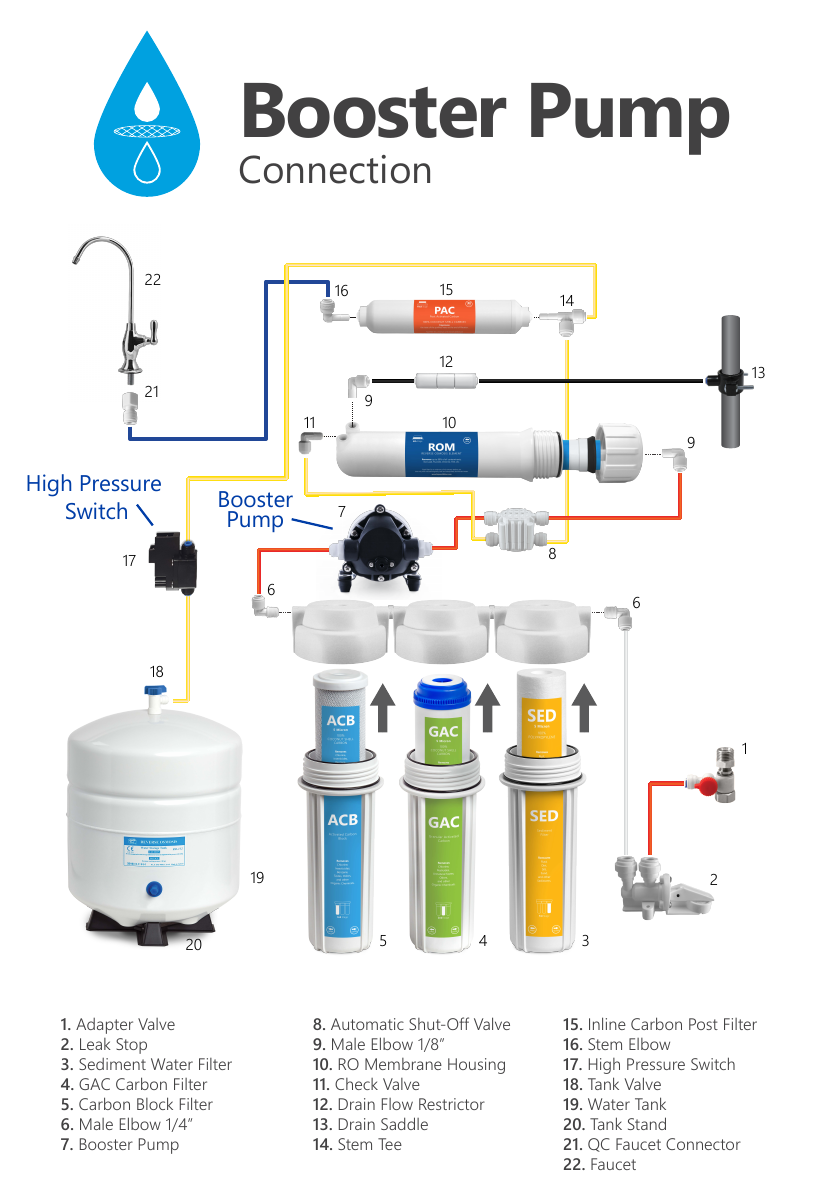

reverse osmosis installation" on YouTube. Fig1. System diagram (models without booster pump) sales@ispringfilter.com Page 5 Fig2. System diagram (models with booster pump) Fig3. Electrical wiring diagram (Models with booster pump) sales@ispringfilter.com Page 6 Parts Index 0. O-ring seated in the groove 13-14. Optional ice maker kit • Installation & Service manual System Requirements • Working pressure: 45 to 80 psi feed water pressure required, if below 45 psi, a booster pump is needed. We have a RO system with booster pump assembly. If the input pressure is above 80 psi, you MUST put a pressure regulator to reduce the pressure below 80 psi. Jun 13, 2011 · Diagram of a 4 stage Reverse Osmosis system with Booster Pump and Permeate Pump. Click on the PDF emblem and you will be transferred to the diagram. There is additional information on this web site for installation of the RO system. Click on Instruction Manuals and you can mouse down and locate the RO Installation Instructions.
Ro booster pump installation diagram. The Booster Pump increases the feed water pressure to the membrane, while the Permeate Pump is located after the membrane and eliminates the performance robbing back pressure created by a full, or filling, air charged storage tank (see diagram # 2). Residnetial RO systems work with diaphragm booster pumps that will typically increase the feed pressure upto 75-100 PSI. Install the pump directly in the RO feed line (see diagrams below) following these guidelines. A sediment filter should always protect the pump large particulate matter in water. We like to mount the pump a few inches from the source water input into the RO system. Step 3. Using an RO Tube Cutter or a sharp razor blade cut your units RO tubing where you will want to splice in the booster pump and push the tubing into the head of the booster pump making sure to follow the flow direction arrow printed on the pump. Step 4. My water pressure was not high enough for a dual chamber RO/DI system so I am adding a booster pump to get the pressure between 65 and 80 PSI. I purchased th...
