10. Mixing valves are recommended on all tanks if hot water temperature is above 119oF. 11. Expansion tank must be rated for use with potable water. 12. Use either indirect/tank sensor or system/pipe sensor mounted on common return to the boiler. 13. Aquastat or system/pipe sensor connects to DHW sensor input on boiler. A water system provided with a check valve, backflow preventer, or other normally closed device that prevents dissipation of building pressure back into the water main, independent of the type of water heater used, shall be provided with an approved, listed, and adequately sized expansion tank or other approved device having a similar function ...

COLD WATER SHUT-OFF HOT COLD (1) EXPANSION TANK FIGURE 1. INSTALLING THE EXPANSION TANK WATER PIPING This expansion tank is designed for operation on the inlet cold water line and is limited to a maximum working pressure of 150 pounds per square inch (psi) is rated to NSF/ANSI-61 DHOT 1(40° F) . The continuous temperature on the tank cannot ...

Hot water expansion tank installation diagram

cold water inlet fitting (1) expansion tank inlet cold water shut-off hot recommended installation - vertical mounting cold /˙0 pressure guage (3) pressure reducing valve with by-pass floor, ceiling, joint, etc. strapping 24567(˙ˆ installing the expansion tank water piping $ˇ ! ˙ ˜ ˇ ˝ ˝! ˝ ˝ ˙ ˜+>< ˇ] ^˛ • ˙ + Installed near the tank inlet to hold water in the tank during pump installation when the pump is idle. 8. Tank Tee Connets water line from pump to pressure tank and service line from tank to house. Taps are provided to accept Pressure Switch, Pressure Gauge, Drain Valve, Relief Valve, Sniffer Valve, etc. 9. Drain Valve Drain easy draining of ... If the water temperature differentials between inlet and outlet are high, then a large external water tank would be used to store the cold water. In this case the chilled water is not going directly from the chiller to the application, but goes to the external water tank which acts as a sort of "temperature buffer." The cold water tank is much larger than the internal water goes …

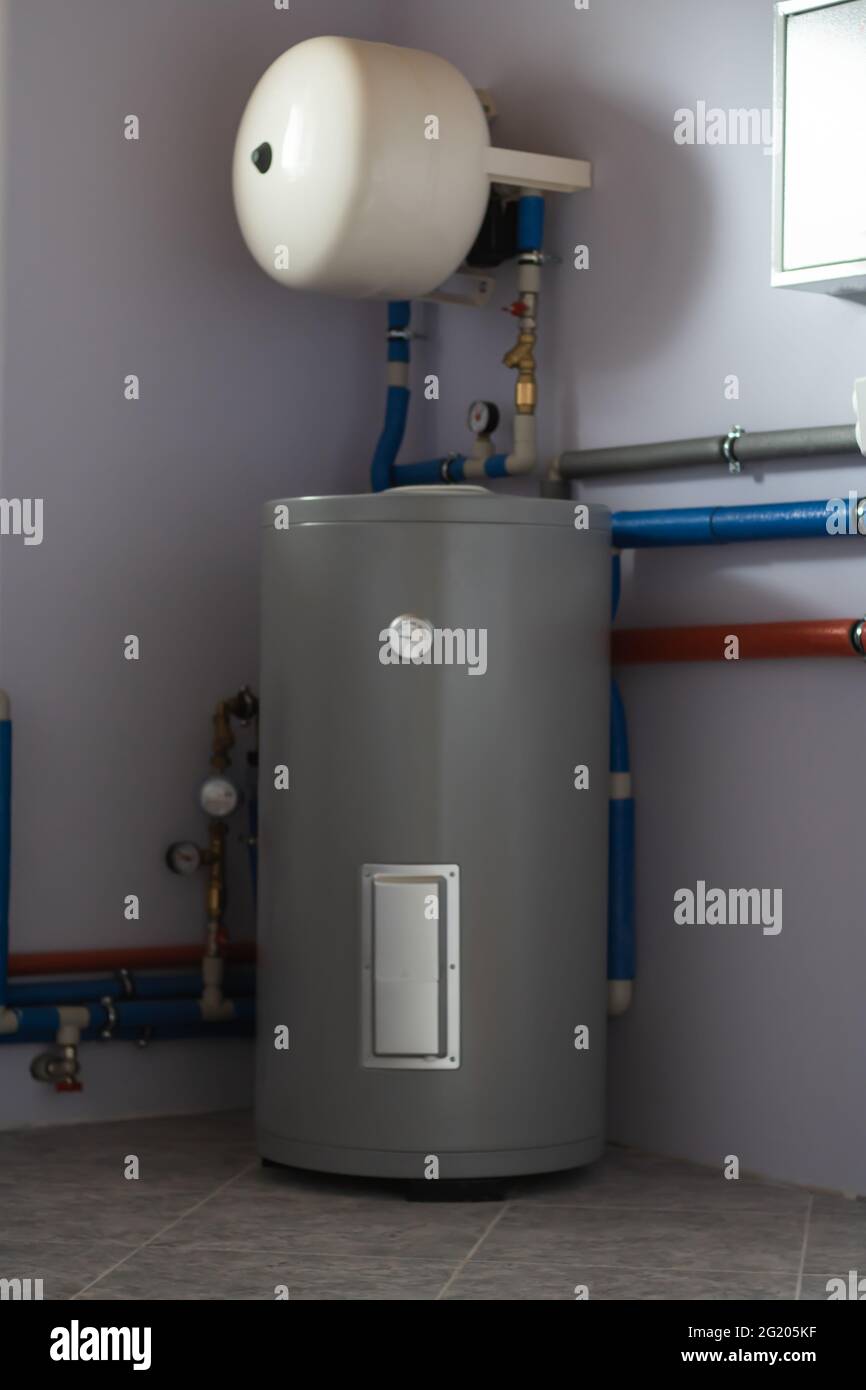

Hot water expansion tank installation diagram. Contents [ show] 1 Now, the question is how to install an expansion tank on a gas water heater. 2 Step 1: Determine the water pressure. 3 Step 2: Determine the size of your thermal expansion tank. 4 Step 3: Turn off the water supply. 5 Step 4: Turn off the gas. 6 Step 5: Find the cold water supply. 7 Step 6: Install your expansion tank. Join me today as i bring a water heater up to code and show you how to install a thermal expansion tank! Commercial Electric Heat Pump. Commercial Tank Type Electric. Commercial Tank Type Gas. Commercial Tankless. Domestic Circulating Water Heaters. Residential Piping Diagrams. Step 4. Prepare the area for mounting the expansion tank. Hot water heater expansion tank installation requires mounting the expansion tank above the water heater. If there is insufficient vertical space, you might want to mount it on the wall next to the water heater. Position the mounting bracket on the wall and mark the holes for the fasteners.

The open vent pipe - is the main safety setup for an open vented hot water system. It helps the system cope with the expansion of water in the system. The open vent pipe should end in the storage cistern allowing for the control of expansion of the hot water in the system. 12 Hot Water Recirculation with a Mixing Valve 31 Drawing, SYS-02-015 Dual Tank Installation 12 Receiving & Unpacking 31 Drawing, SYS-02-017 Remote Zone Hot Water Piping 12 General Assembly 32 Drawing, SYS-02-019 Aeroso S.S. Storage Tank Powerstock storage tank installation manual Powerstock Storage Tank, 500001177, Installers guide, O&M, operation and maintenance manual, installation manual Type: … The water capacity of gas cylinder is a figure that is mostly irrelevant for consumers. Engineers use it. As it suggests, the water capacity of gas cylinder sizes is the cylinder capacity of the LPG gas cylinder sizes as if they were filled with water. You can see the “W.C.” stamped into the neck ring in the image above.

According to Rehm et al (1983), innovation over the years has led from the skim pit to installation of the stock tank, to the gunbarrel, to the freewater knockout, to the hay-packed coalescer and most recently to the Performax Matrix Plate Coalescer, an enhanced gravity settling separator. The history of water treating for the most part has been sketchy and spartan. There is little … How to know if you need a water heater expansion tank replacement. While a traditional water heater might last 10-15 years, your expansion tank could fail before this point. First, you can extend the life of your expansion tank through proper installation that ensures the air pressure in the tank matches the water pressure in your home. WATTS ET ETX EXPANSION TANK INSTALLATION INSTRUCTIONS [PDF] (2008) Series ETX, ETSX hot water heating system expansion tanks, Op. Cit. Excerpt: Series ETX may be installed in a tee or any other suitable tapping in the heating system and can be installed in a vertical or horizontal position. Series ETSX are floor models. TANKLESS WATER HEATER INSTALLATION DIAGRAMS Rheem Water Heating ATTN: Tankless Business Unit 2600 Gunter Park Drive East Montgomery, AL 36109-1413 Office: 334-260-4692. Hot Water to Fixtures Gas Pipe Cold Water Pipe Hot Water Pipe Union Return Circulation Line Shut-off Valve ... C-2 MICS-180 Controller Expansion Card (RTG20126B) (7) Manifold ...

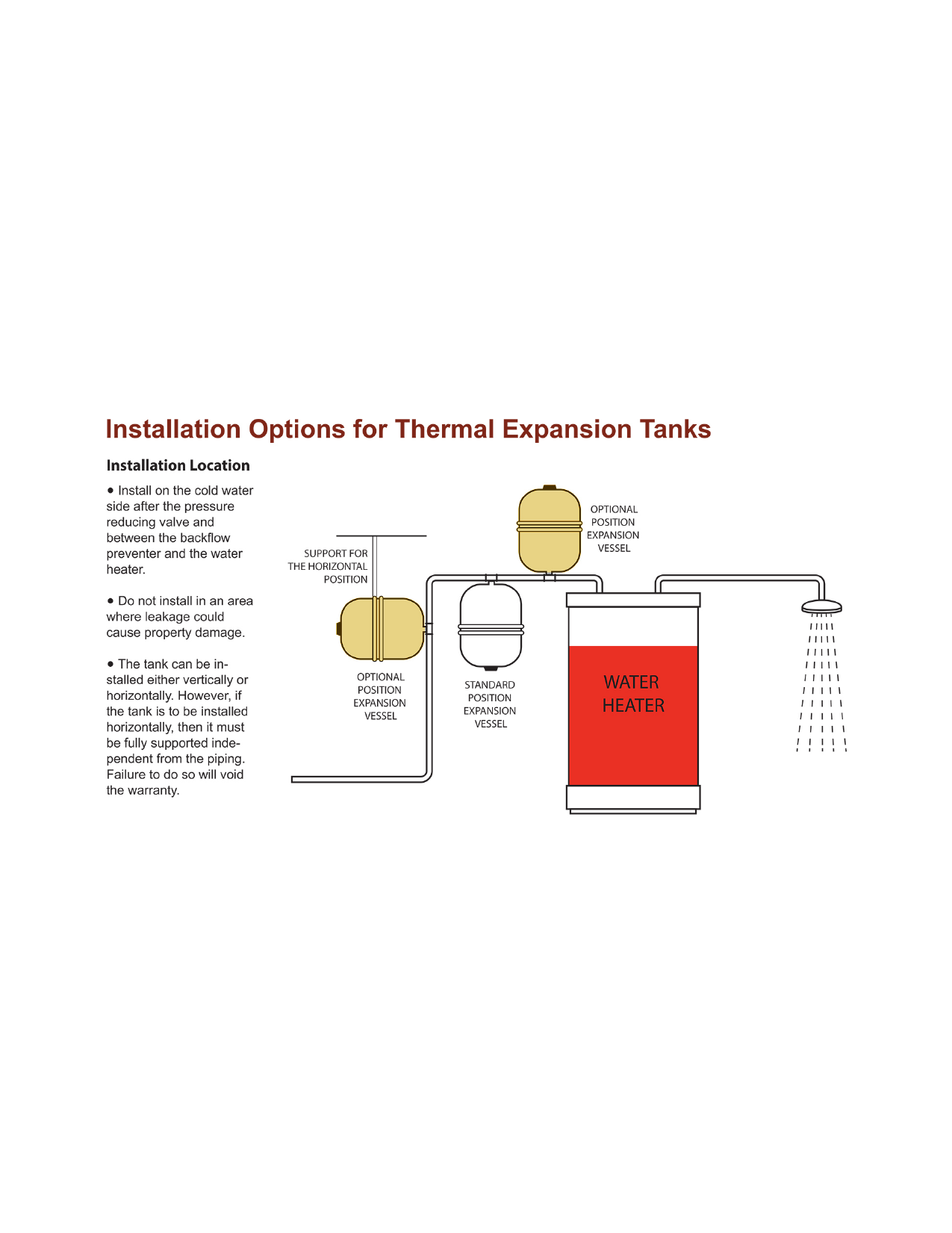

Use the hand pump to increase the air pressure if needed. It is recommended to install a thermal expansion tank on the cold water line, horizontally and close to the water heater. Use the threaded T- fitting, Teflon tape, and pipe wrench to make the watertight connection. Remove the trapped air by opening the hot water tap.

It is recommended to thought-out beforehand the places of installation the water purification devices and mark these places on the diagram. Typically, they are located near the sink units, water coolers, ice makers, coffee makers, etc. Example 9: Flat Plumbing Plan. This diagram was created in ConceptDraw DIAGRAM using the combination of libraries from the Plumbing and …

16.04.2014 · When water is heated, it expands, increasing the pressure in closed heating systems. An expansion tank is designed to alleviate the pressure and extend the life of your system. Here's how it works.

with a properly sized diaphragm expansion tank. Otherwise, significant heat transfer problems can occur by causing air to be trapped in the heat exchanger. If the boiler system has a diaphragm expansion tank and the boiler temperatures are being changed, resize the expansion tank. If installing on city water supply, a properly sized

Install tank as close as possible to the pump pressure switch to reduce friction loss and elevation difference between the tank, water supply main, and switch. 3. After installation, be sure the pressure switch is set low enough to shut the pump off. If all valves are closed and the pressure switch

INSTALLATION MANUAL FOR WATER HEATER EXPANSION TANK Please read the following instructions carefully. Keep this manual with the tank for future reference. TANK WRENCH SCREWS PIPE GASKET PIN FITTING Cold Water Supply Residential Application Only One-Way Device Water Heater Expansion Tank Water Heater Hot Water G5 & G12 TANK THREADED TEE (NOT ...

Expansion tanks come in 2 gallon and 4.5 gallon sizes.We can help you to choose the proper one for your home. If you are considering adding an expansion tank to your hot water heater. call us today at 770-505-8570. We will be happy to answer any of your questions about the project and cost.We are available 24 hours a day, 7 days a week.

A guide to the most common types of domestic heating and hot water systems with diagrams, including indirect boiler system, unvented system, thermal store. A guide to the different ways of heating domestic hot water so you can identify problems and faults with the hot water tank or central heating system and carry out any maintenance needed.

tank. installation of the tank prior to adjusting the pre-charge can result in incorrect pre-charge readings. 4. the pipe connection to the system may now be made. the piping require-ments for captive air tanks are different from those of plain steel expansion tanks. note the captive air tank Piping Diagrams. Piping and air elimina-

Since the water does not boil in the reactor, the steam for the turbines must be produced external to the reactor. This is done in steam generators, which are heat exchangers with pressurized water on the hot side. A typical steam generator is shown in Fig. 3.76. High-pressure, heated coolant water from the reactor enters at the bottom and ...

If the tank is piped incorrectly, this will inhibit operation and testing of the bladder tank in the future. Below are the steps to properly pipe an expansion tank. (Refer to the piping diagram as well.) The pipe from the expansion tank should be the same size as the tank connection, and it will usually be connected to the system at the top of ...

If the water heater tank has a high pressure while working with a defective expansion tank, water will drip with a TPR valve. Common Questions about Installing Water Heater Expansion Tank 1. Is It Mandatory By Law To Install A Water Heater Expansion Tank? Yes, especially if you're using a closed water supply systems.

Old unmodified gravity systems are usually direct, which means the water from the hot taps and hot water cylinder is the same water that is circulating through the radiators. There is no separate header tank and heating coil inside the HWC as in modern systems. One pipe system. This is a diagram of the obsolete one-pipe pumped system. There are ...

2. As the water temperature rises, water enters the expansion tank. 3. As the system cools, the diaphragm is forced downward. Water is expelled from the expansion tank, back into the heating system. Notes 1. Although the expansion tank does not have to be installed at the base of an air purger, this installation is recommended to

Installing the water heater. 6 Thermal Expansion Typical Installation Determine if a check valve exists in the inlet water line.It may have been installed in the cold water line as a separate back flow preventer, or it may be part of a pressure reducing valve, water meter or water softener. A check valve located in the cold water inlet

A thermal expansion tank has an internal air bladder which can absorb the expanded water, protecting plumbing, appliances and the water heater. For these reasons, most homes now need a thermal expansion tank (and a properly adjusted pressure regulating valve).
