This is a complete list of LabVIEW development environment keyboard shortcut keys. Object Movement Navigating the LabVIEW Environment Navigating Front Panels and Block Diagrams Navigating the VI Hierarchy Window Debugging File Operations Basic Editing Help Tools and Palettes SubVIs Execution Wiring Text Icon Editor See also 6.Create the block diagram for this VI as shown inFigure 6. Figure 6 Circle Area Perimeter.vi Block Diagram Right-click on the block diagram to open the Functions palette and place down the necessary mathematical functions from the Programming !Numeric subpalette, as shown inFigure 7.

Press Ctrl and drag to make more space on the block diagram (press Esc to abort). Press Alt+Ctrl and drag to remove space on the block diagram (press Esc to abort). Press Ctrl and drag while using the Positioning tool to duplicate objects. Drag a front panel control to the block diagram to create a constant.

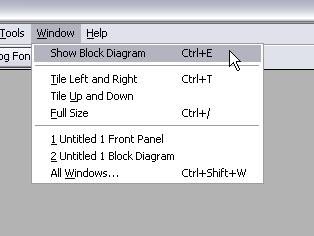

How to open block diagram in labview

A required block diagram terminal is unwired. Refer to the Using Wires to Link Block Diagram Objects topic of the LabVIEW Help for information about setting required inputs and outputs. A subVI is broken or you edited its connector pane after you … Open the VI you want to generate a block diagram image for. Go to File » Print. Choose the VI or VIs you want to print. If you want just the image of the block diagram, choose Icon, description, panel and diagram. If you want full VI documentation, choose VI documentation. Click Next. If you choose VI documentation, ensure Block diagram is checked. Note If you save a VI without the block diagram, users cannot edit the VI, move the VI to another platform, or upgrade the VI to a future version of LabVIEW. Complete the following steps to save VIs without the block diagrams to reduce the file size and prevent users from changing the source code.

How to open block diagram in labview. Oct 25, 2020 · Is there any way to open a subpanel VI block diagram window while it is loaded in a Subpanel ? Complete the following steps to open subVI block diagram in a Subpanel control. Before running VI, right-click Subpanel control and select Allow User to Open Diagram. Run the VI. Right-click Subpanel control and select Open Block Diagram. r/LabVIEW. LabVIEW is a graphical programming environment by National Instruments^TM used by millions of engineers and scientists to develop sophisticated measurement, test, and control systems using intuitive graphical icons and wires that resemble a flowchart. The LabVIEW platform is scalable across multiple targets and OSs, and, since its ... Jul 27, 2006 · Another option is in LabVIEW 8.0, The SubPanel Control has an option that you can turn on to allow opening of the Block diagram. This allows you to open the block diagram of an embedded VI while the application is running in the subpanel by right clicking on the subpanel and choosing open block diagram. Finding a Block Diagram Terminal from a Front Panel Object in LabVIEW-----...

Displays the subVI block diagram and front panel. Drag VI icon to block diagram: Places that VI as a subVI on the block diagram. Shift-drag VI icon to block diagram: Places that VI as a subVI on the block diagram with constants wired for controls that have non-default values. Ctrl-right-click block diagram and select VI from palette 2. Place an Open FPGA VI Reference function on the block diagram. Place Find 3. Right-click the Open FPGA VI Reference function and select Configure Open FPGA VI Reference from the shortcut menu. 4. Select the Bitfile option in the Configure Open FPGA VI Reference dialog box. 5. Navigate to the bitfile you want to open on an FPGA target. 6. Then, follow the steps below to draw the block diagram of the system. Figure 1. LabVIEW initial window 1. In the Block Diagram window, right click anywhere and hover over the Control Design & Simulation menu and then click on the thumbtack in the upper left corner to keep the menu open as shown in Figure 2. Figure 2. Control Design & Simulation ... place it in the block diagram. Alternatively, use LabView's Quick Drop function (simultaneously hold down CTRL and the spacebar) to open up a search window and type in the keywords. The Help window shows that this VI requires the coefficients in the form of an array. In the block diagram, select Array: Build Array.

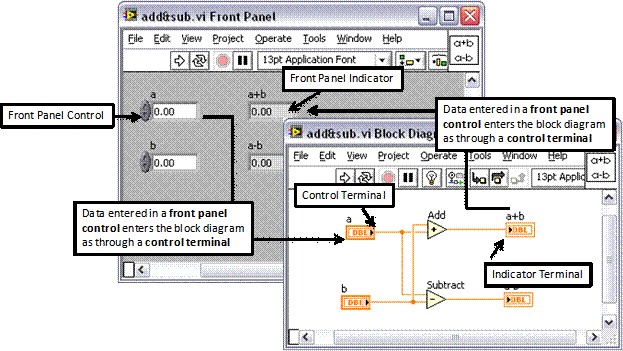

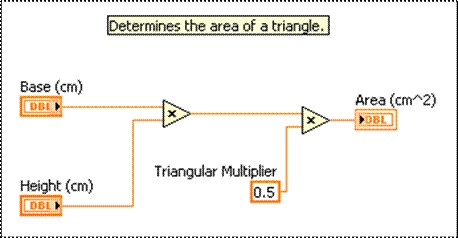

Data points you enter into the front panel controls (a and b in the previous front panel) enter the block diagram through the control terminals. The data points then enter the Add and Subtract functions. When the Add and Subtract functions complete their calculations, they produce new data values. Adding Function in the Block Diagram 23 Adding Functions to the Block Diagram Adding the Add Function to the Block Diagram 1. Right-click the block diagram once, this will open the Functions palette 2. Find the Arithmetic and Comparisons button in the Functions palette 3. LabVIEW ties the creation of user interfaces (called front panels) into the development cycle. LabVIEW programs/subroutines are called virtual instruments (VIs). Each VI has three components: a block diagram, a front panel, and a connector panel. The last is used to represent the VI in the block diagrams of other, calling VIs. LabVIEW displays the front panel of the subVI. You also can press the key and use the operating or positioning tool to double-click the subVI on the block diagram to display the block diagram and front panel of the subVI. For Mac OS press the key and for Linux press the key. Step 2: Edit the subVI. Placing Subvis On Block Diagrams

LabVIEW for ACS Motion Controllers | Elegant & Easy ...

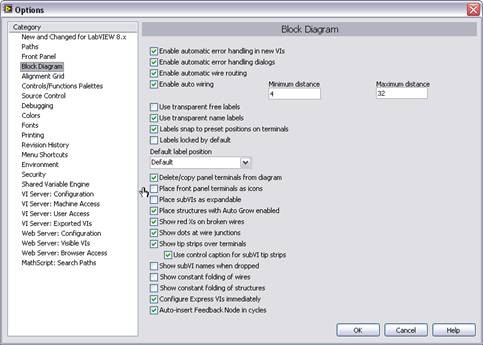

Select Tools»Options to display the Options dialog box and select Block Diagram from the Category list to display this page. Use this page to set block diagram options. This page includes the following components: General —Use this section to set general block diagram options.
