45 free body diagram of horizontal circular motion

5.7 Drawing Free-Body Diagrams - General Physics Using ... Figure 5.32 (a) The free-body diagram for isolated object A. (b) The free-body diagram for isolated object B. Comparing the two drawings, we see that friction acts in the opposite direction in the two figures. Because object A experiences a force that tends to pull it to the right, friction must act to the left. Because object B experiences a component of its weight that pulls it to the left ... Circular Motion - Southeastern Louisiana University Circular Motion Lab from Rhett Allain on Vimeo. So, what are you going to do? First, the physics. If I were to draw free body diagram for the stopper at the above instant, it would look like this: There are only two forces on the stopper, the tension from the string and the gravitational force.

Free Body Diagram Centripetal Force - schematron.org The correct free-body diagram is diagram 3, which shows only the force of gravity applied by the Sun on the Earth. The word "centripetal" means "directed toward the center." When an object experiences uniform circular motion, the object has a centripetal acceleration directed toward the center of the circle.

Free body diagram of horizontal circular motion

Forces and Free-Body Diagrams for Circular Motion Forces and Free-Body Diagrams in Circular Motion. The Forces in Circles Concept Builder provides learners with the challenge of identifying the free-body diagrams for situations involving the motion of objects in circles. Learners are presented with a short verbal description of an object's motion. They toggle through a set of free-body ... PDF Chapter 6 Circular Motion - Weebly centripetal force in the free body diagram. Uniform Circular Motion Cases Horizontal Circular Motion Example 1: Object revolving in a horizontal circle with steady speed. Example 2: Motion of car round a flat curve. PDF Force and Motion II - University of Alabama at Birmingham Revisit uniform circular motion and using the concept of centripetal ... The free body diagrams for frames a-e show the existence of a new force which ... back covers of the book are perpendicular to the book and are horizontal. The book weighs 31 N.

Free body diagram of horizontal circular motion. Physics Help: Centripetal Force Free Body Diagrams Part 7 ... simple easy to follow videos all organized on our website. PDF PY105 Uniform and Vertical Circular Motions Free-body diagram for the water. Sketch a free-body diagram for just the water, if the speed is less than the critical speed. a = g "down" is down. mg m. b. g. N=0. If same . v. o, same path! Roller coaster. On a roller coaster, when the coaster is traveling fast at the bottom of a circular loop, you feel much heavier than usual. Why? Draw ... Uniform circular motion - Boston University In this case, the free-body diagram has three forces, the force of gravity, the normal force, and a frictional force. The friction here is static friction, because even though the objects are moving, they are not moving relative to the turntable. If there is no relative motion, you have static friction. Free Body Diagram for Circular Motion - YouTube Demonstrating how to begin setting up a free-body diagram and equations for circular motion. Immediately follows "Free Body Diagrams and Newton's 2nd Law".

PDF Lecture 6 Circular Motion - School of Physics Circular Motion Lecture 6 ... the free-body diagram. The centripetal acceleration has to be provided by some other force (tension, friction, normal force) in order for circular motion to occur. 10 ... 72 km/h around a horizontal curved road with radius of curvature 190 m. (Draw a free-body diagram) Free-Body Diagrams for Objects in Uniform Circular Motion ... This gives us a net force equation of Fnet = Fn + Fg. The free body diagram above depicts the roller coaster at the bottom of the loop, where Normal Force is pointed upwards and Force of Gravity is pointed downwards. This gives us a net force equation of Fnet = Fn - Fg. PDF AP Physics Lab #8: Exploring Circular Motion (Big Ideas 5,4) Sketch a free body diagram of an object traveling in a horizontal plane. 3. Sketch a free body diagram of the forces acting on a conical pendulum. 4. Design an experiment to study the variables that affect the motion of a conical pendulum. Exploring Circular Motion Pre-Lab: According to Newton 's first law, an object will travel in a straight ... PDF Chapter 8. Dynamics II: Motion in a Plane example of circular motion. But why doesn't the car fall ... from the free-body diagram. Dynamics in Two Dimensions 3. Solve for the acceleration. If the acceleration is constant, ... The vertical motion is free fall, while the horizontal motion is one of constant velocity. Uniform Circular Motion

PDF Circular Motion and Circular Dynamics Circular Motion and Circular Dynamics Review of Previous Lecture: ... A woman is applying a horizontal force of 200 N on a 100 N box, trying to pin it against a rough wall. The coefficient of static friction between ... Free body diagram for the glass v v. A ball with a weight of 2 N is attached to the end of a cord of Forces and Free-Body Diagrams for Circular Motion ... The Forces and Free-Body Diagrams in Circular Motion Concept Builder is shown in the iFrame below. There is a small hot spot in the top-left corner. Clicking/tapping the hot spot opens the Concept Builder in full-screen mode. Use the Escape key on a keyboard (or comparable method) to exit from full-screen mode. Solved NUUUUUUU 1. Draw free-body diagrams for each of the ... Draw free-body diagrams for each of the following objects in uniform circular motion. State the force(s) providing the centripetal force. . . . a) The Earth orbiting the Sun b) A car making a curve on a horizontal road c) A ball on a string swinging in circles on a horizontal surface d) A ball on a string swinging in circles in the vertical plane For an object attached to a string spinning in horizontal ... Answer (1 of 5): No, you must learn to draw a correct Force Diagram, sometimes called a Free Body diagram. Since you are stipulating uniform horizontal circular motion, you know that the upward component of tension in the string MUST equal the downward force of gravity. Having these two vertical ...

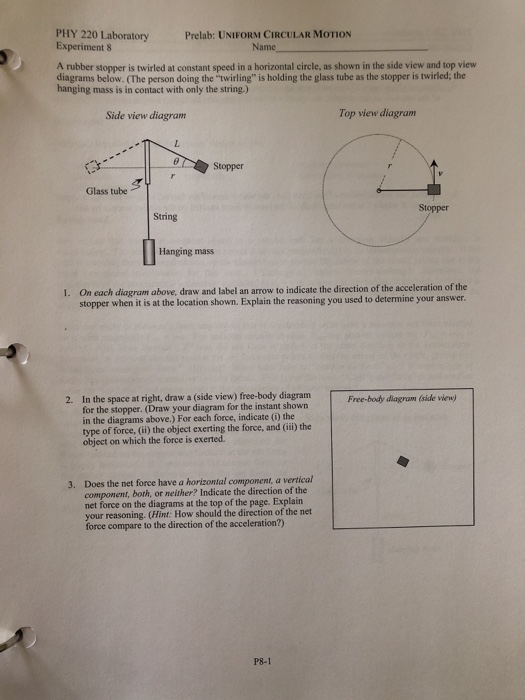

Solved PHY 220 LaboratoryPrelab: UNIFORM CIRCULAR MOTION ...

Solved Sketch a free body diagram of the mass (m) which ... Sketch a free body diagram of the mass (m) which undergoes horizontal uniform circular motion (Draw and label the force that acts horizontally on the object, draw centripetal acceleration of the object, show the center of the circle for the object)

Uniform Circular Motion Centrifugal Force Velocity, PNG ...

PDF AP Physics Practice Test: Laws of Motion; Circular Motion Laws of Motion; Circular Motion ©2011, Richard White 8. A billiard ball (mass m = 0.150 kg) is attached to a light string that is 0.50 meters long and swung so that it travels in a horizontal, circular path of radius 0.40 m, as shown. a. On the diagram, draw a free-body diagram of the forces acting on the billiard ball. b.

Uniform Circular Motion Pre

Circular Motion Flashcards | Quizlet During an experiment, an object is placed on a disk that rotates about an axle through its center, as shown in Figure 1. The disk is a distance R =0.10 m from the center and rotates with a constant tangential speed of 0.60 ms. A free body diagram of the forces exerted on the block is shown in Figure 2 with an unknown force of friction.

Force and Acceleration in Circular Motion

PDF Physics Kinematics, Projectile Motion, Free-Body Diagrams ... Rotational Motion 1. Draw a diagram of the object or objects that will be the system to be studied. 2. Draw a Free-body diagram for the object under consideration. 3. Identify the axis of rotation and determine the torques about it. Choose positive and negative directions of rotation, and assign the correct sign to each torque. 4.

Chapter 5: Uniform Circular Motion - ppt video online download

PDF Free-Body Exercises: Linear Motion - Heck's Physics The free-body diagram in each case consists of only the dark, solid arrows. Forces of the same magnitude or lines of the same length are indicated by the same number of "tick" marks drawn through the two lines or arrows. Symbols:w=weight, T=tension,n=normal reaction force,f=friction. TNote that the 2Itension is not iproportional to string length.

1. Click anywhere in the black area below to see a movie ...

Identifying Free-Body Diagrams for Objects in Uniform ... Identifying Free-Body Diagrams for Objects in Uniform Circular Motion AP Physics 1 Skills Practice A jogger is running at a steady pace on the boundary of a flat, circular track.

homework and exercises - What balances out the Normal force ...

PDF Force and Motion II - SMU • Problems involving circular motion are no different from other Newton's law problems. • Identify the forces acting on an object. • Draw a free body diagram. • Write Newton's 2nd law. • In this case, the acceleration has magnitude v2/r and the direction points toward the center of the circle. Newton's 2nd law: In components:

Forces in Circles Concept Builder: in this interactive ...

Circular Motion - Free Body Diagram Drawing - Positive ...

Newton's Second Law - Revisited

centripetal force - Circular motion, free-body diagram ... I having difficulty in explaining to my son the free-body diagram for following problem: A child flies a toy sphere attached at the end of a light elastic string. The string is level with the horizontal... The actual question is easy to solve using uniform circular motion equations (and has nothing to do with my question).

Free Body Diagram - an overview | ScienceDirect Topics

PDF Circular Motion Problems ANSWERS Circular Motion Problems - ANSWERS 1. An 8.0 g cork is swung in a horizontal circle with a radius of 35 cm. ... Draw a free body diagram indicating the forces acting on the ball. ... F y =0 Motion is horizontal so y-forces must cancel y-component = 1.2 N y-component cancels force of gravity Tan 22.6o = F Tx /F Ty SOH-CAH-TOA F Tx =1.2 tan 22 ...

Newton's Second Law - Revisited

Force and Acceleration in Circular Motion The free-body diagram for the moving ball is given in Figure 4. Since the ball moves in a horizontal circle, its acceleration is horizontal. It is convenient therefore to use coordinates that are horizontal and vertical, and in the force diagram Fstring has been resolved into its horizontal and vertical components. Figure 4 ΣFx = max gives

6.3: Uniform circular motion - Physics LibreTexts

PDF Force and Motion II - University of Alabama at Birmingham Revisit uniform circular motion and using the concept of centripetal ... The free body diagrams for frames a-e show the existence of a new force which ... back covers of the book are perpendicular to the book and are horizontal. The book weighs 31 N.

Free body diagram of the car as the car moves along the ...

PDF Chapter 6 Circular Motion - Weebly centripetal force in the free body diagram. Uniform Circular Motion Cases Horizontal Circular Motion Example 1: Object revolving in a horizontal circle with steady speed. Example 2: Motion of car round a flat curve.
